Troubleshooting Destination Paths

Relates to versions - 1.8.1619+

Why do I not have a destination for my task?

 If you are not seeing any destinations, it will be due to the Destination Paths you have set up. To troubleshoot these, scroll to a date in the animation where one of the problem steps is happening, click the drop down arrow next to the green Run button and choose run with snapshot. From the box select Current Animation Date and Add Snapshot.



Navigate to the Equipment Tab -> Select the correct equipment -> Click DestinationPaths -> Tick on Applies to Current source Task and then you should be able to click through the different destination paths and see why they are unavailable.




Some destination paths will have no tasks available, due to the destination path being entirely dumped to, some destination paths will have constrained tasks that will not yet be available due to dependencies or constraints.

You can also see which Destination paths apply to the solid from the animation window by right clicking. If the Destination Paths Usages box does not appear, then there are no destination paths that apply to this source task.

My task has no Destination Paths

Navigate to the Destination Paths of your model and select which path you would expect to apply to this step. Make sure the Source Range includes the Source Node that is in the task, as well as the process that the task is.

Want to learn more?

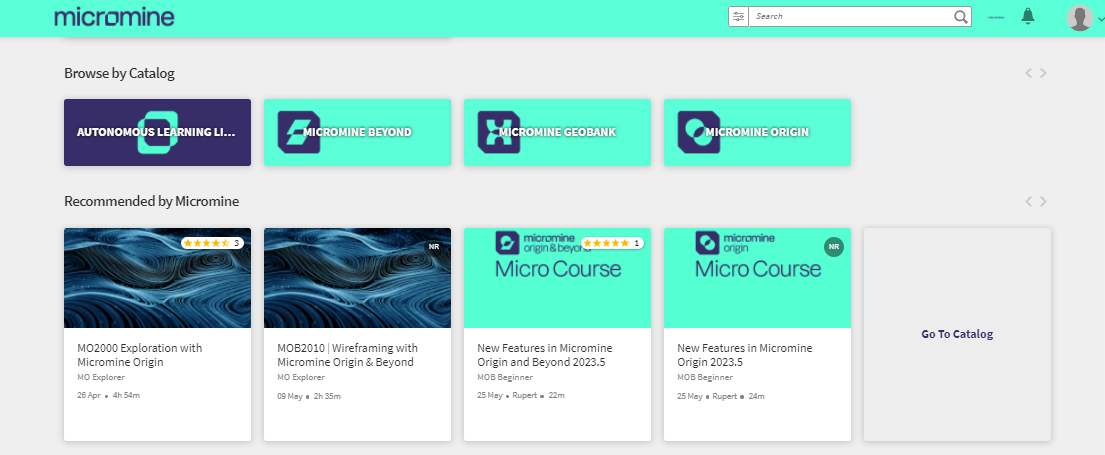

Click here to login to our Learning Management System
